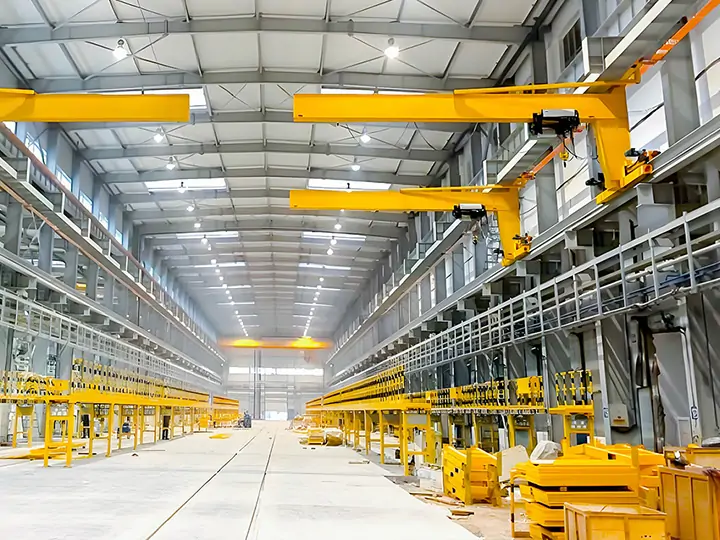

BB type wall-traveling jib crane

The light wall-mounted jib crane is directly installed on vertical structures such as walls or columns, widely used in industrial production and assembly operations. It occupies no floor space, has a compact and flexible structure, making it ideal for improving work efficiency.

A wall-mounted jib crane is a lifting device that fixes the jib to a load-bearing wall or equipment column using bolts or brackets. The front arm can rotate horizontally and is equipped with an electric hoist or manual hoist to achieve horizontal lifting of materials, suitable for hanging, handling, assembling, and other local lifting tasks.

Advantages & Features

Structural Composition

The BX type wall-traveling jib crane mainly consists of the following parts:

• Safety Devices: Equipped with patented safety designs such as an anti-derailment device to ensure reliable operation.
• Main Steel Structure: Includes the fixed column, the jib (cantilever beam), and the crane travel mechanism that allows the jib to move along the wall rail.
• Hoisting and Slewing Mechanism: The core is the electric hoist, responsible for lifting loads. Some models allow the jib to slew around the column (rotation angle up to 180 degrees), driven by a three-in-one gearbox, increasing the working coverage area.
• Electrical Control System: Uses PLC control and variable frequency speed regulation to achieve smooth operation and precise control. The system typically features a high protection等级 (e.g., IP55) to suit industrial environments.

Applications

• Machinery Industry: It can transport and position equipment to improve production efficiency.
• Automotive Industry: Handles automotive parts, supports全面 production and assembly, ensuring smooth production.
• Construction Industry: Handles construction raw materials and accelerates construction efficiency.
• Food Industry: Handles raw materials, semi-finished products, and finished products, ensuring smooth processing.
