Portal crane

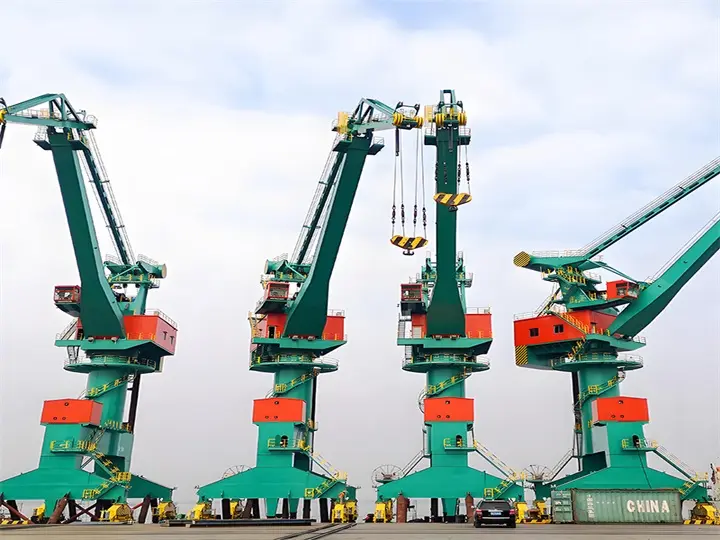

Weihua portal crane is a large-scale slewing lifting equipment installed on dedicated rails at port terminals. It features a classic and stable four-bar linkage boom system. This design ensures that the load maintains minimal horizontal height deviation during luffing (changing the operating radius), resulting in very smooth operation.
Specifications
  • Maximum operating radius: 30-45m
  • Minimum operating radius: 8.5-12m
  • Operating radius: 6.5-9.5m
  • Working class: A4-A7
Introduction

The Weihua portal crane is a large-scale slewing lifting equipment installed on dedicated tracks at port terminals. It features a classic and stable four-bar linkage jib system. This design ensures that the load maintains minimal horizontal height variation during luffing (changing the working radius), resulting in very smooth operation.

One of its outstanding features is its multi-functionality. It can be equipped with hooks, bulk cargo grabs, or container spreaders, easily handling various tasks such as general cargo, bulk materials, and containers.

  • 1. Utilizes an electronically controlled balancing system to ensure the closing mechanism and hoisting mechanism are not overloaded during operation, reducing downtime.
  • 2. The four-bar linkage is optimized using dynamics software to ensure horizontal load movement during luffing, while increasing the transmission angle and reducing the pressure angle, thereby improving the service life of the four-bar linkage system.
  • 3. Applies a luffing-type movable counterweight to minimize the overturning moment caused by the load during lifting operations, increasing the service life of the slewing bearing.

Structural Composition

A typical Weihua portal crane mainly consists of the following major systems:

System ModuleMain Components & Functions Included
Metal StructureMainly includes the portal (supports the entire crane and runs on tracks), the slewing platform, and the core four-bar linkage jib system (enables smooth luffing under load).
Hoisting MechanismResponsible for the vertical lifting of goods, one of the core power components of the crane.
Luffing MechanismDrives the jib to luff (pitch), changing the working radius of the crane.
Slewing MechanismDrives the slewing platform and jib to perform a 360-degree full rotation, enabling wide-area coverage operations.
Travel (Crane) MechanismDrives the entire crane to move along the port tracks to adjust the working position.
Electrical & Control SystemUtilizes fully digital AC variable frequency speed control and PLC (Programmable Logic Controller) for smooth stepless speed regulation and intelligent control. The system also integrates comprehensive safety monitoring and management functions.

Applications

Weihua portal cranes are primarily used for cargo handling operations at port terminals, which is their main application scenario.

  1. Port Terminal Handling: This is their core application field, serving coastal and inland river ports. They can be used for:
    • Bulk Carrier Unloading: Grab unloading operations for bulk materials such as ore and coal.
    • General Cargo Handling: Loading and unloading single-piece goods like steel and machinery using hooks.
    • Container Operations: Equipped with container spreaders and rotary automatic following technology for container transfer.
  2. Large-Scale Port-Adjacent Industrial Projects: Serves major industrial projects near ports, such as logistics parks for petrochemical and shipbuilding enterprises, undertaking heavy lifting and transfer tasks for raw materials and finished products.
Brand Advantages
Strong capabilities
A leading enterprise in China's crane industry, with an annual production capacity exceeding 100,000 sets of lifting equipment. Its smart factory ranks among the industry's top in scale and production capacity. In 2023, order volume surpassed 4 billion yuan, with its market coverage and delivery capabilities widely recognized.
Rich experience
With over six decades of deep expertise in the lifting equipment sector, our service network spans more than 170 countries worldwide. Having completed over 500,000 projects across diverse complex industrial scenarios, we have accumulated extensive application experience and solutions.
Qualifications and Honors
The company operates a National-level Enterprise Technology Center and holds over 1,800 authorized patents. It has received 135 provincial-level and higher science and technology awards, led or participated in the formulation of multiple international/national standards, and earned certifications including the National Manufacturing Single Champion title.
Quality Assurance
Strictly implementing the ISO international quality system, with automation rates exceeding 95% in critical processes. Pioneering the “New Chinese-style” structural optimization technology, significantly reducing equipment weight and energy consumption. Rigorous quality control throughout the entire production process ensures safety and reliability.
Technological Innovation
Annual R&D investment accounts for 4%-6% of revenue, with an academician-led technical team of over 1,200 members. Breakthroughs in key bottlenecks such as millimeter-level anti-sway technology (≤2mm) continuously drive the iteration of intelligent, lightweight, and low-carbon technologies.
After-sales Service
With over 300 service centers worldwide, we guarantee 24-hour rapid response. Equipped with the “Crane Butler” intelligent operation and maintenance system, we provide remote diagnostics and preventive maintenance, ensuring full lifecycle service support for your operations.
