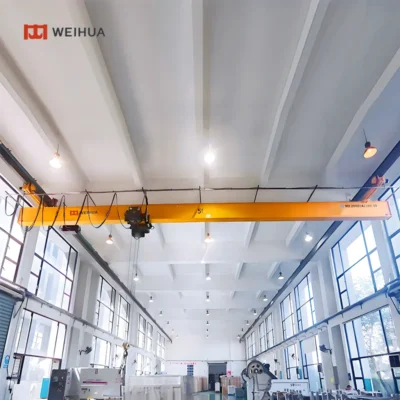

LX type electric single-girder underslung crane

The Weihua LX type electric single-girder underslung crane is typically used in conjunction with CD1 or MD1 type electric hoists, forming a complete light and small lifting device that operates on rails.
Specifications
  • Lifting capacity: 0.5t – 10t
  • Span: 3m – 22.5m
  • Working class: A3 – A5
  • Travel speed: 20 m/min
Introduction

Weihua LX型 Electric Single-Girder Underhung Crane is typically used in conjunction with a CD1 or MD1 type electric hoist, forming a complete light and small lifting device capable of traveling on rails.

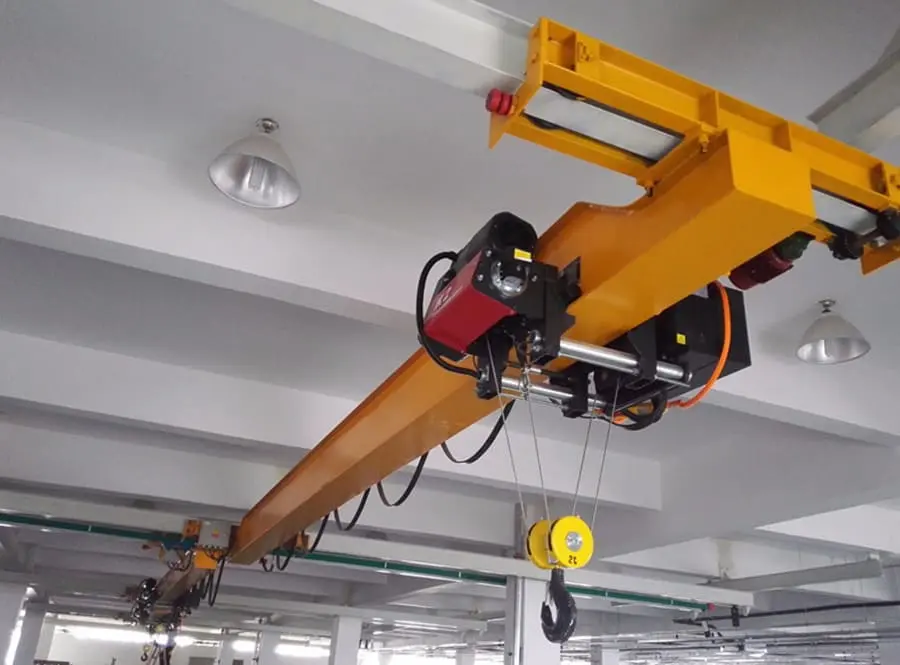

Weihua LX型 Electric Single-Girder Underhung Crane features a main girder that operates suspended from the lower flange of an I-beam track, offering a compact structure and flexible operation. Its lifting capacity is generally 0.5-10 tons, with a span of 3-22.5 meters and a working class of A5, making it suitable for material handling in workshops, warehouses, and other locations with fixed spans.

Specifications

UnitValue
Lifting Capacityt0.5~10
Spanm3~22.5
Crane Travel Speedm/min20
Lifting Speedm/min7~8, 0.7~0.8/7~8
Trolley Travel Speedm/min20
Working Class—A3
Power Supply—220V, 380V, or others

Advantages & Features

Space and Cost Savings
1. As a light and small crane, its compact structure and light deadweight effectively reduce the load on the plant structure and construction costs. 2. Durable and long-lasting, reducing repair and maintenance costs.
Flexible and Adaptable
1. Wide range of span options, and cantilever designs can be provided upon request to increase the working range. 2. The detachable connection design of the main girder and end carriages facilitates transportation and on-site installation.
Safety and Reliability
1. Equipped with safety devices such as lifting limit switches and end limit switches. 2. The travel mechanism uses a conical rotor brake motor, providing reliable drive and braking. 3. Weihua Group has passed the ISO 9001 international quality management system certification and has a comprehensive quality management system.
Efficient and Easy to Maintain
1. The travel mechanism uses separate drives, resulting in higher transmission efficiency. 2. Product design emphasizes convenience for use, maintenance, and servicing.

Applications

  • Machinery Manufacturing Industry: Used for parts handling and assembly, effectively improving production efficiency and reducing the labor intensity of manual handling.
  • Warehousing and Logistics Industry: For loading, unloading, stacking, and handling goods, particularly suitable for light and small cargo handling needs.
  • Food Processing Industry: For raw material handling and finished product packaging. Its contamination-free and flexible operating characteristics meet the hygiene requirements of the food industry.
  • Assembly Workshops and Laboratories: In assembly workshops and central laboratories, for precise positioning of material handling and component assembly, meeting the fine operational needs of the production process.

    Henan Weihua has previously served key national projects such as the South-to-North Water Diversion Project and the West-to-East Gas Pipeline Project.
Brand Advantages
Strong capabilities
A leading enterprise in China's crane industry, with an annual production capacity exceeding 100,000 sets of lifting equipment. Its smart factory ranks among the industry's top in scale and production capacity. In 2023, order volume surpassed 4 billion yuan, with its market coverage and delivery capabilities widely recognized.
Rich experience
With over six decades of deep expertise in the lifting equipment sector, our service network spans more than 170 countries worldwide. Having completed over 500,000 projects across diverse complex industrial scenarios, we have accumulated extensive application experience and solutions.
Qualifications and Honors
The company operates a National-level Enterprise Technology Center and holds over 1,800 authorized patents. It has received 135 provincial-level and higher science and technology awards, led or participated in the formulation of multiple international/national standards, and earned certifications including the National Manufacturing Single Champion title.
Quality Assurance
Strictly implementing the ISO international quality system, with automation rates exceeding 95% in critical processes. Pioneering the “New Chinese-style” structural optimization technology, significantly reducing equipment weight and energy consumption. Rigorous quality control throughout the entire production process ensures safety and reliability.
Technological Innovation
Annual R&D investment accounts for 4%-6% of revenue, with an academician-led technical team of over 1,200 members. Breakthroughs in key bottlenecks such as millimeter-level anti-sway technology (≤2mm) continuously drive the iteration of intelligent, lightweight, and low-carbon technologies.
After-sales Service
With over 300 service centers worldwide, we guarantee 24-hour rapid response. Equipped with the “Crane Butler” intelligent operation and maintenance system, we provide remote diagnostics and preventive maintenance, ensuring full lifecycle service support for your operations.
